Mobile Computing and Data Collection in Digital Forklift Systems

As warehouse intelligence continues to advance, the automation and informatization levels of forklifts in warehouses have also been significantly enhanced. In the past, warehouse management relied on manual retrieval and paper-based record verification to collect data, which was prone to human errors, reduced efficiency, and could not achieve real-time monitoring and data analysis. The new-generation intelligent warehouse logistics can be assisted by various technologies, including vehicle-mounted computer computing, wireless transmission, cloud services, RFID, UWB positioning, and sensors. Through the deployment of barcode scanners and handheld devices, it realizes real-time data collection and command delivery, thereby accelerating the flow of goods in a flexible operating mode. This provides more accurate and real-time data support for warehouse management.

Data collection within the warehouse is essential. Rugged tablet PCs come with touchscreen input, similar to all-in-one vehicle computers. Nevertheless, the more prevalent input devices are barcode scanners and RFID readers.

In warehouse, the management center sends instructions to the forklift mounted computer via a wireless network, directing the driver to relocate goods to the designated location. The driver uses a barcode scanner to scan and identify each piece of goods and then sends the goods’ information and operation results back to the backend system.

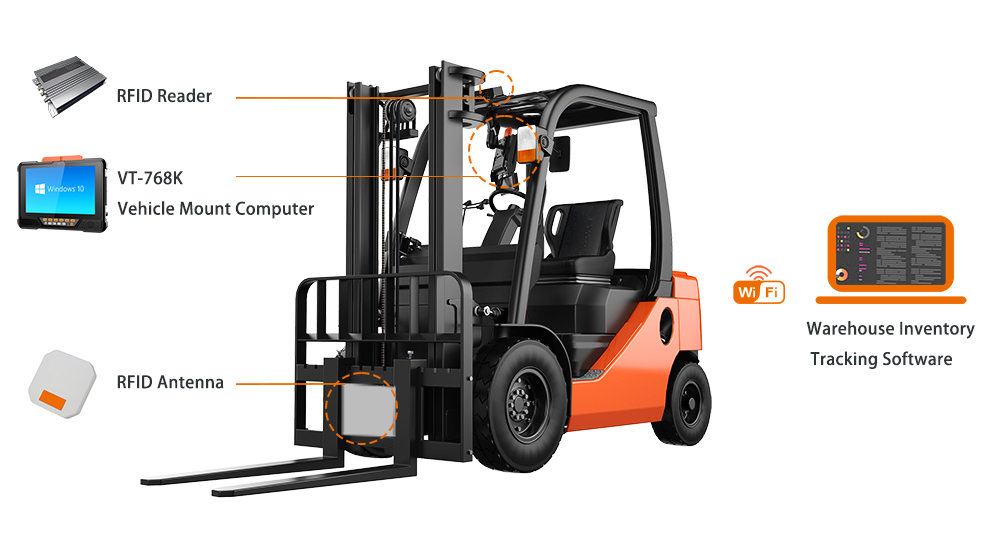

When handling large quantities of goods with a broader reading range, the RFID reader proves advantageous for rapid data collection and tracking, as it does not require individual contact or precise scanning. This is done by installing an RFID detection antenna on the front fork, scanning the RFID tags on multiple goods at once and then transmitting the collected data to the RFID reader. Finally, the data is inputted to the vehicle mount computer through wired or wireless means, thus completing the automatic identification of goods. This data can be sent back to the backend server at any time.

Sunboo’s vehicle mount computer and rugged tablets offer the following advantages:

• Wide Range of Product Choices

Sunboo’s vehicle mount computer VT series offers a variety of sizes, ranging from 7 to 12.1 inches and supports capacitive touchscreen and resistive touchscreen, with available operating systems including Windows and Android. The VT series also offers models with QWERTY keyboards or function keys. The rugged tablet RTC series offers 8- and 10.1-inch options, also supporting Windows and Android operating systems.

• Rugged Design

The VT series has a robust, corrosion-resistant aluminum alloy case. The entire device meets the IP65 dust and water resistance level and incorporates a fanless, 8-36 VDC wide-voltage power input design. It complies with the US military MIL-STD-810G shock and vibration test standards. RTC series tablets are designed for mobile tasks and field operations, featuring a high level of protective design.  The entire machine is IP67 rating and meets the MIL-STD-810H shock and vibration test standards.

• Rich I/O Connectivity

The VT series has a wealth of interfaces, including USB, COM, GbLAN, DIO (4 in/ 2 out), CAN bus, and can also be expanded with M12 waterproof connectors. The RTC series provides USB, USB Type-C, LAN, and aviation plug (two of USB, RS232, and DC-in can be selected). It can meet the connection needs of various peripherals.

• Wireless Communication

Both the VT series and RTC series offer a variety of wireless connectivity options, including Wi-Fi, Bluetooth, 4G LTE/5G, and GNSS. This can provide on-site workers and warehouse centers with the latest data transmission and high-efficiency work efficiency, allowing them to access real-time important information and communication.

• Versatile Accessories

The VT series and RTC series are suitable for all warehouse vehicle installation and usage requirements. The VT series offers a variety of vehicle mounting brackets, industrial IP65 keyboards, sunshades, antennas with different dBi gain units, and mobile power supplies with IP65 M12 connectors. The RTC Android series is equipped with a 10,000mAh detachable large-capacity battery and a hand strap that can be easily removed from the forklift to meet the needs of long-term tasks and provide greater flexibility.
