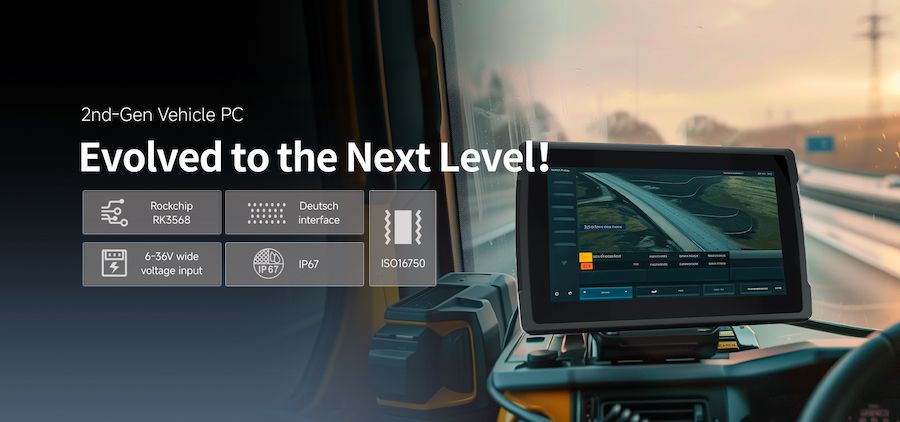

Sunboo is proud to unveil the 2nd-Gen V12R Vehicle PC Tablet, an innovative solution crafted to boost the efficiency and productivity of agricultural machinery. This state-of-the-art vehicle-mounted tablet integrates high-performance capabilities with a rugged design, making it the perfect choice for the demands of the farming industry.

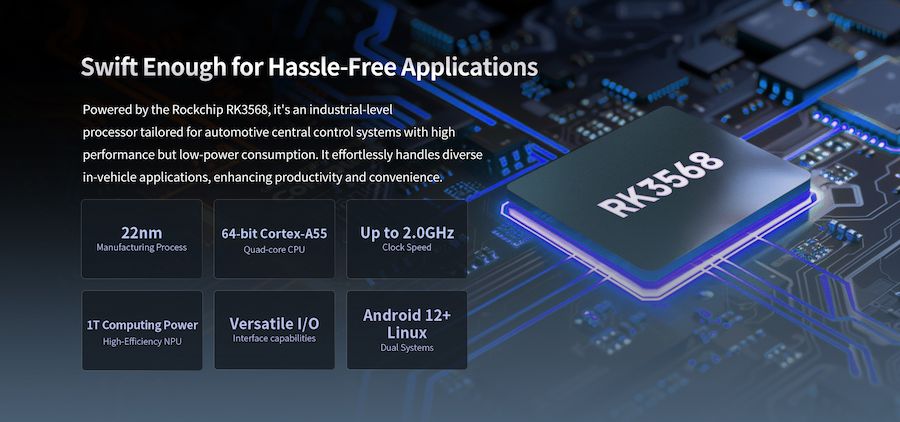

The V12R is equipped with the Rockchip RK3568 processor, with an optional upgrade to the RK3568J variant. This industrial-grade processor is specifically designed for automotive central control systems, delivering exceptional performance with minimal power consumption. Built on a 22nm process, it features a 64-bit Cortex-A55 quad-core CPU with a clock speed of up to 2.0GHz, ensuring smooth handling of a wide range of in-vehicle applications. Additionally, the integrated high-efficiency NPU with 1T computing power significantly boosts processing capabilities. The V12R supports dual operating systems—Android 12 and Linux—offering versatile solutions for various software needs.

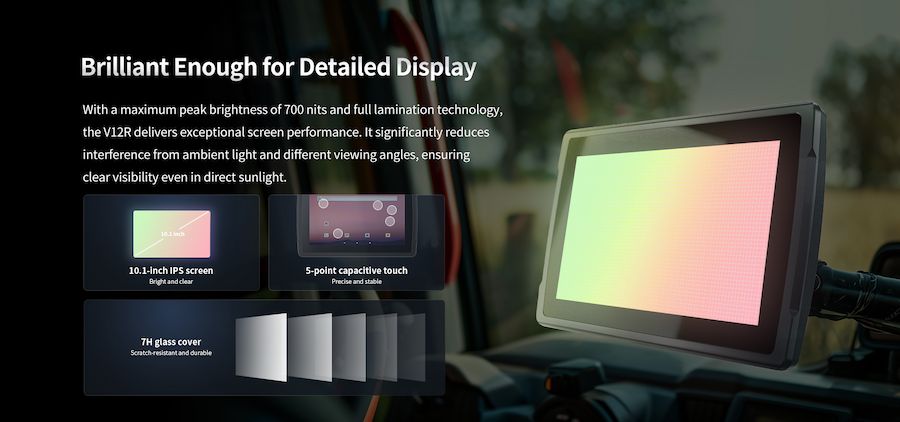

A key highlight of the V12R is its 10.1-inch IPS display, delivering exceptional clarity with a peak brightness of 700 nits. The full lamination technology minimizes reflections from ambient light and various viewing angles, ensuring optimal visibility even in direct sunlight. The screen features 5-point capacitive touch functionality and a 7H glass cover, providing precise, stable interaction while offering impressive scratch resistance and durability.

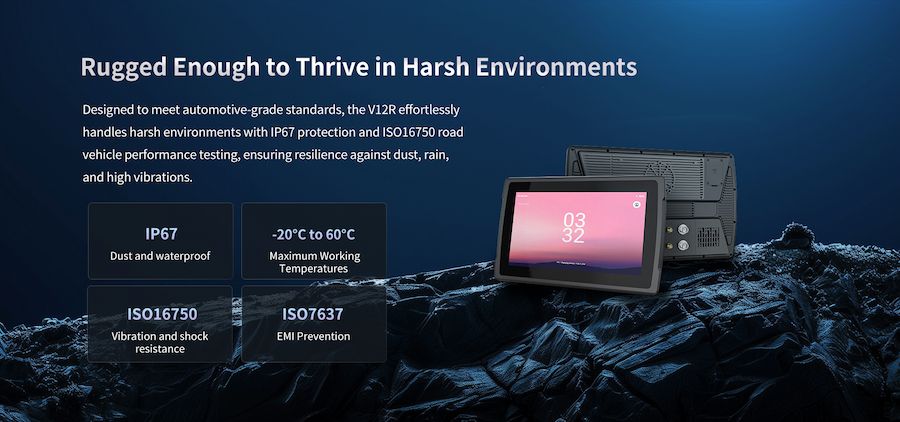

The V12R is built to excel in demanding conditions, adhering to automotive-grade standards with IP67 protection against dust and water. It also complies with ISO16750 road vehicle performance testing. Capable of operating in extreme temperatures from -30°C to 70°C, the V12R includes an over-temperature shutdown feature to protect the device. This robust design ensures the V12R can handle the rigorous demands of agricultural fieldwork with reliability and durability.

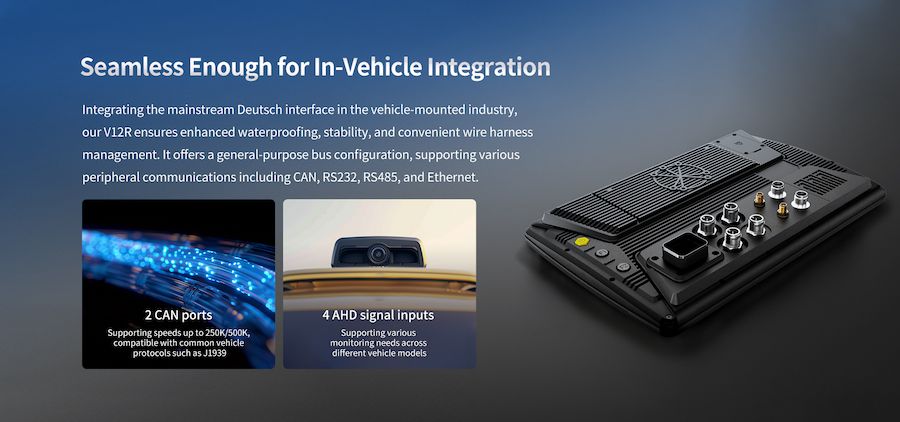

To ensure smooth integration with farming machinery, the V12R features the widely-used Deutsch interface, renowned for its superior waterproofing, stability, and easy wire harness management. The V12R supports a variety of peripheral communications through its versatile interface options, including CAN, RS232, RS485, and Ethernet. This adaptability makes it ideal for a broad spectrum of agricultural applications, ranging from monitoring and control systems to data collection and transmission.

The V12R features a wide voltage module that supports an input range of 6V to 36V, allowing it to handle sudden current surges and meet the power supply needs of high-voltage agricultural machinery. Its ACC function includes ignition detection with a delayed switch, ensuring dependable operation under various conditions.

The V12R’s versatility extends across multiple in-vehicle scenarios. It is suitable for use in construction vehicles such as electric shovels, excavators, bulldozers, and command vehicles; agricultural machinery including rotary tillers, harvesters, and transplanters; commercial vehicles like logistics trucks, hazardous materials transport vehicles, and buses; port transport equipment such as container trucks, reach stackers, yard cranes, and quay cranes; airport logistics support vehicles including tow trucks, deicing vehicles, shuttle buses, and fuel trucks; and factory transport vehicles like forklifts. This extensive applicability makes the V12R an invaluable tool across various sectors in the agricultural industry.
